Product Specifications

• Features:

   2 independent programmable outputs for versatile control. (2 in one)

   Wide supply voltage range AC/DC 24 – 240 V, accommodating various installations.

   Replaceable CR2032 battery for reliable time backup.

   NTP server synchronization for accurate timekeeping.

   Summer/winter time adjustment, ensuring year-round accuracy.

   Sealable cover and PIN code protection for security.

   Wi-Fi enabled for easy configuration.

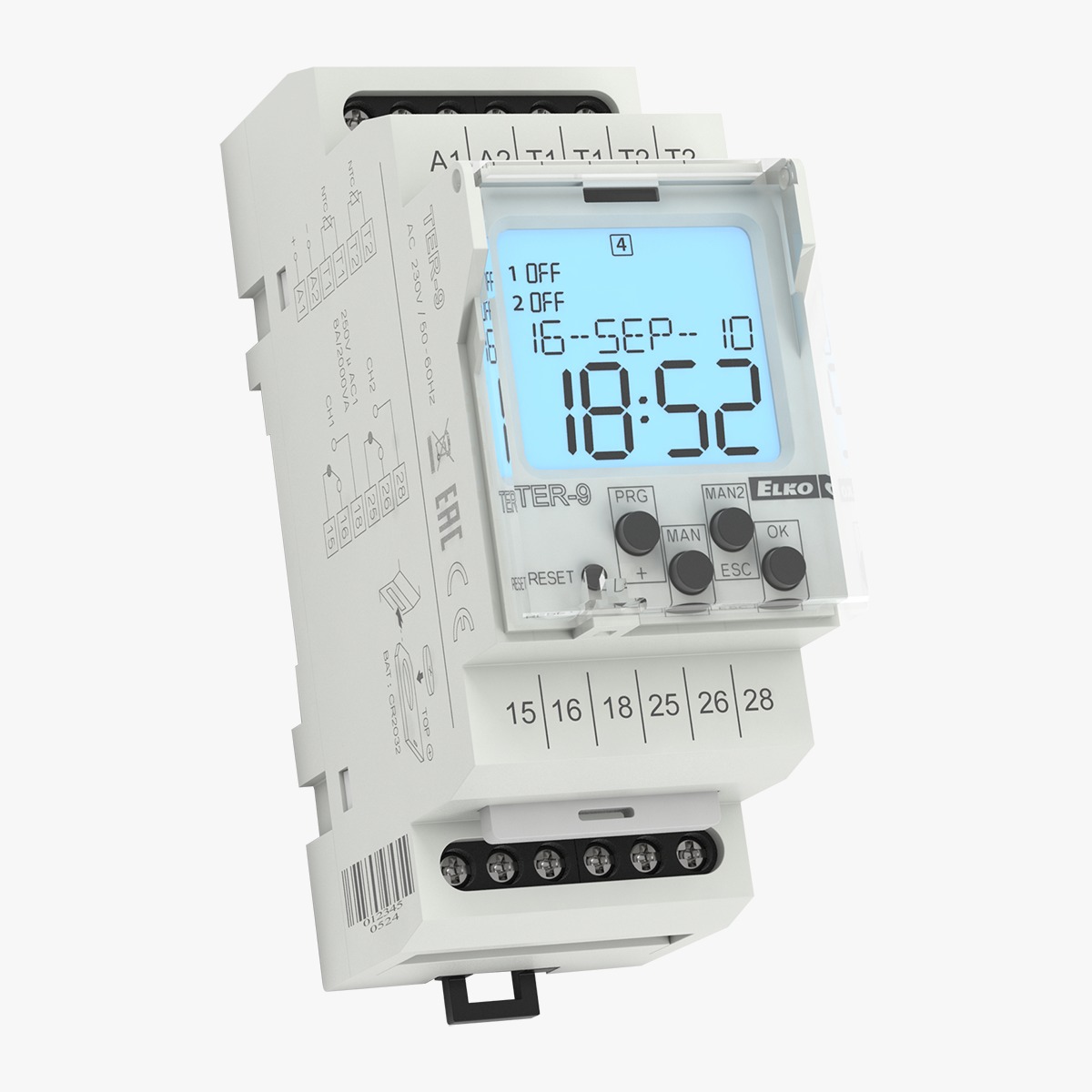

  DESCRIPTION All-in-One digital time relay, with various programs (daily, weekly, yearly and astronomical, mixed, random). Simple setting after the first start-up, built-in Web Server for setup via Wi-Fi connection. ASTROnomic program with manual entry of geogr. coordinates or selecting one of the preset cities. 2 independant programmable outputs with permanent NO or NC, pulse or cycle mode.

   ADVANTAGES

  • Supply voltage range AC/DC 24 – 240 V, (AC 50-60 Hz)
  • Replaceable battery to back up the set time (CR2032)
  • Possible time synchronization through NTP server
  • 2 independant output channels (CO 2x16A)
  • Summer/winter time – AUTO or OFF
  • Sealable transparent front panel cover
  • PIN code protection against unauthorized changes
  • Wi-Fi (2.4 GHz)
  • Output: 2x changeover, 16 A
